Container foundation free concrete mixing plant

Container foundation free concrete mixing plant (building)

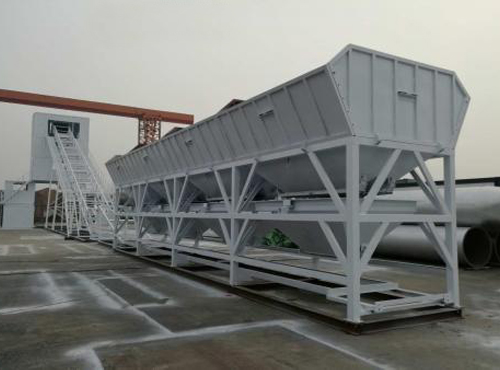

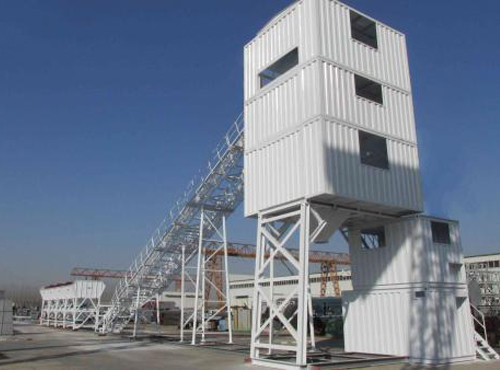

The main structure of the container free foundation concrete mixer adopts a container type fully enclosed structure, with an outer sealed container plate that is sturdy and durable, avoiding repeated external decoration after relocation. A container type water tank is added, and a Shigao Ma produced filter cartridge back blowing dust removal system is installed. The aggregate feeding area inside the building adopts a sealed design to ensure environmental protection requirements within the mixing station. Using a 25 ° herringbone belt for feeding and equipped with a unique head cleaner, even high moisture sand will not adhere to the belt. The control room of the container structure is sturdy and durable, making it easy to relocate multiple times. The half height design makes it easy for operators to observe the situation of concrete falling. The main building module and container design make lifting and dismantling extremely convenient. The layout of the mixing plant can be adjusted according to the site requirements.

The main structure and hopper lifting system of the container foundation free concrete mixing plant also adopt a container type fully enclosed structure. The aggregate is lifted by double winches for dual protection, avoiding the lifting hopper from falling due to broken ropes and increasing the service life of the lifting system.

As an optional accessory, the all steel structure equipment chassis provides users with multiple installation options.
