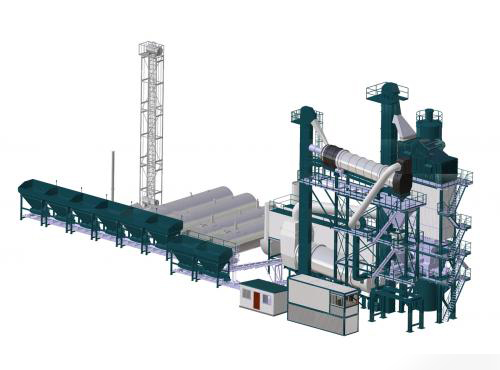

R series asphalt old material recycling mixing equipment

Jianke Machinery has fully absorbed decades of experience in asphalt old material recycling technology and equipment from Europe and America, and developed the R series asphalt old material recycling and mixing equipment based on China's national conditions. The equipment not only has reliable and stable performance, but also has flexible matching methods. It can be used in combination with various types of asphalt mixture mixing plants existing and currently in use in the market, and is suitable for various types of equipment such as 1000-5000. The proportion of asphalt old material added can reach up to 60%

Main Technical Parameters of R120 Factory Asphalt Old Material Recycling Mixing Equipment

When the discharge temperature is between 120 ℃ and 150 ℃ and the completion of one working cycle is 60 seconds, the production capacity is 80-120 t/h, and the proportion of asphalt old material added is 30-60%.

1) The moisture content is only the surface moisture content

2) The ambient temperature is 15 ℃

3) The bulk density of the stone material is 1600kg per cubic meter

4) Sand content<35%

5) Production capacity includes stone powder and asphalt

6) The aggregate in the material yard should meet the proportion requirements of the mixing technical specifications

7) The crushed asphalt old material should meet the requirements for stacking and feeding

Main Technical Parameters of R160 Factory Mixing Hot Recycling Equipment

production capacity

When the discharge temperature is 120-150 ℃ and the completion of one working cycle is 60 seconds, the production capacity is 100-160 t/h, and the asphalt old material addition ratio is 30-60%.

Technical data related to production capacity

1) The aggregate in the material yard should meet the proportion requirements of the mixing technical specifications

2) The crushed asphalt old material should meet the requirements for stacking and feeding
